- Noise and vibrations of the auxiliary units play a bigger role in electric vehicles than in vehicles with combustion engines
- Optimized mounts keep the engine in position and protect passengers from uncomfortable sounds and vibrations
- Application-oriented material solutions ensure optimized comfort
Hanover, Germany, August 25, 2021. If you listen closely, the soundscape in a vehicle offers a whole orchestra of different tones, even without the current hits on the radio: the airflow sometimes rushes loudly, sometimes softly, depending on the speed. The turn signal provides a regular rhythm. The air-conditioning compressor and servo motor hum. The tires squeal during overly violent maneuvers. And braking as well as parking assistants beep when the distance becomes too small. Passengers, however, hardly notice many of these sounds – at least when the vehicle is powered by an internal combustion engine. This is because the motor drowns out most of the other sound sources. In electric cars, on the other hand, this phenomenon, also known as the masking effect, is largely absent – and presents the Continental team with new challenges.
After many vehicle manufacturers initially focused on developing the powertrain and extending the range when designing electric vehicles, other factors such as the comfort and well-being of the vehicle occupants are now becoming increasingly important. For, even if the electric drive is objectively quieter than an internal combustion engine, its high-frequency noises in the sometimes four-digit Hertz range are perceived by people as an unpleasant whistling noise, for example. This is mainly due to the different ways the two engines work: In an internal combustion engine, small explosions are generated in each cylinder, while the electric motor drives the vehicle with the help of a rotating magnetic field.
The feeling is also different in the electric vehicle: due to the electromagnetic force generation and the higher speed of the electric motor, the forces and torques in the vehicle act almost instantaneously. If the body then starts vibrating and this is further amplified by the natural frequencies of the structure, for example the motor housing, it leads to perceptible and audible phenomena that can manifest themselves, for example, as a dull tingling in the stomach area or a tonal whistling. In this context, engineers also speak of NVH behavior which stands for noise, vibration and harshness.
In order to isolate these high-frequency excitations from the engine and the road from the body as efficiently as possible, the mounting of motors and chassis in electrically driven vehicles plays an important role. There are plenty of parameters Continental's mounting professionals can adjust in concepts in order to develop an optimal solution tailored to the vehicle, starting with the design and ending with the material.

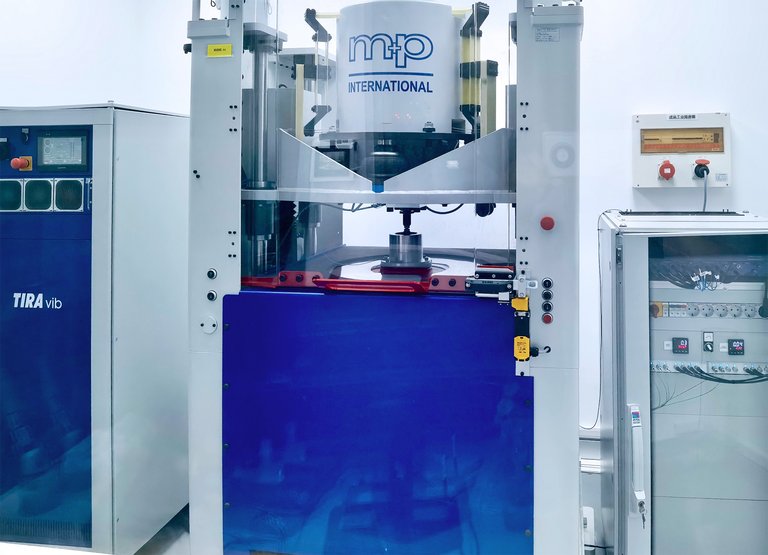

Regardless of the type of drive, a motor mount consists of one connecting element on the engine side, one on the body side and an elastic connecting piece that provides the insulation. Whether a three- or four-point-mounting, a bushing, cone or hydromount, a single or double isolation is best suited depends on the requirements and vehicle platform of the respective manufacturer. With the aid of simulation methods such as finite element analysis (FEA) and proprietary material models, the experts can optimize the design and properties of the motor mount at a very early stage of development, for example in terms of characteristics, strength and resistance to breaking loads or service life. In addition, subjective and objective NVH analysis methods are also used for fine-tuning in the prototype phase in both the vehicle interior and chassis.
Continental's materials experts pay particular attention to the right choice of materials. Since electric vehicles are already quite heavy due to the large battery packs, the aim is to make the components as light as possible while maintaining optimum performance. In this way, the range of the vehicle can be increased. Steel, which can absorb significantly higher forces and torques due to its high specific stiffness, or fiber-reinforced high-performance polyamides, which are particularly light with their low density, are suitable for the connection elements. Often, constructions made of aluminum can represent a middle ground between the two extremes.
For the actual insulating element, the Hanover-based experts draw on 150 years of experience in rubber. The compounds for electric motors also differ from those for internal combustion engines: The rubber compound is exposed to lower temperatures in the engine compartment. Therefore, the target conflict of the compound recipe can be shifted toward dynamic hardening and service life. The challenge for the insulating element lies primarily in finding the right static and dynamic stiffness as well as durability for optimum insulation and maximum safety – so that the noise experience resembles a pleasant sound carpet rather than annoying discords.
